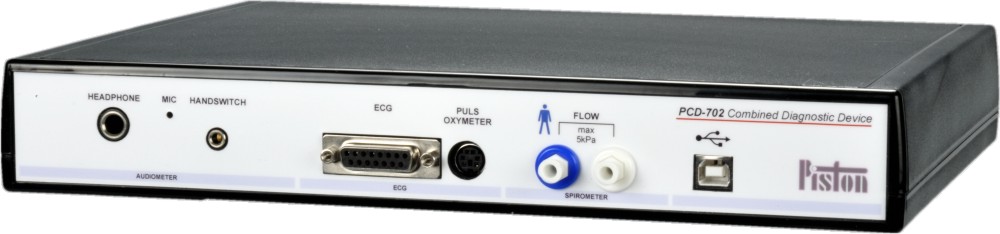

Combo device: Audiometer + ECG + Spirometer: PDD-702

The very first and the only combined device in the market which contains a professional screening audiometer, ECG and spirometer in a single laptop size enclosure

  • Ideal basic diagnostics system on a single PC
  • Labour medicine services
  • School medical services
  • Mass screening and prevention

System integration into information networks

  • Application of standard protocols
  • Health Level 7 (HL7, USA)
  • Geräte Daten Träger (GDT, Germany)

Connecting to the laptop PC provides full portability

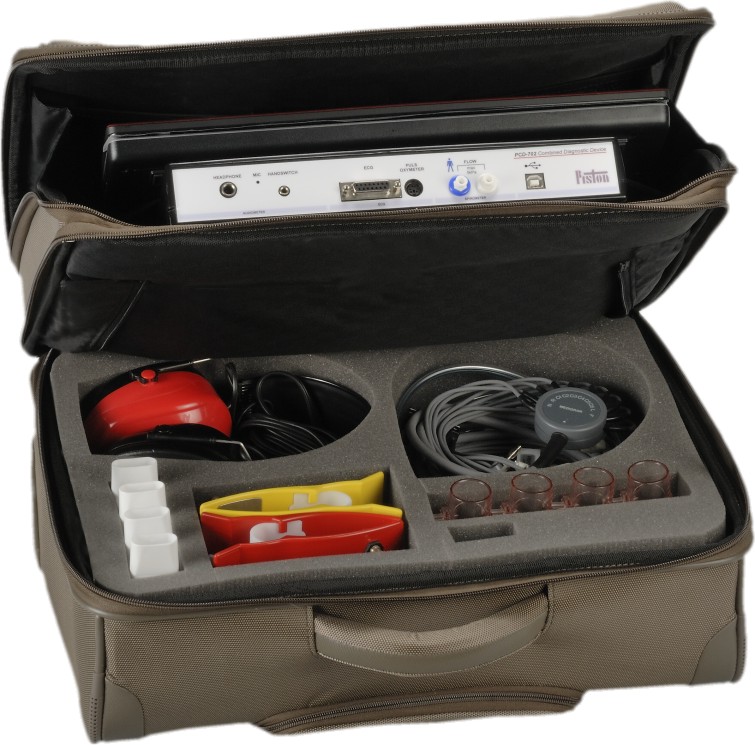

  • Carrying case with wheels (optional)
  • Compartment for accessories

Software system overview

  • Audiometer
  • ECG
  • Spirometer
  • Accessories
  • Technical data

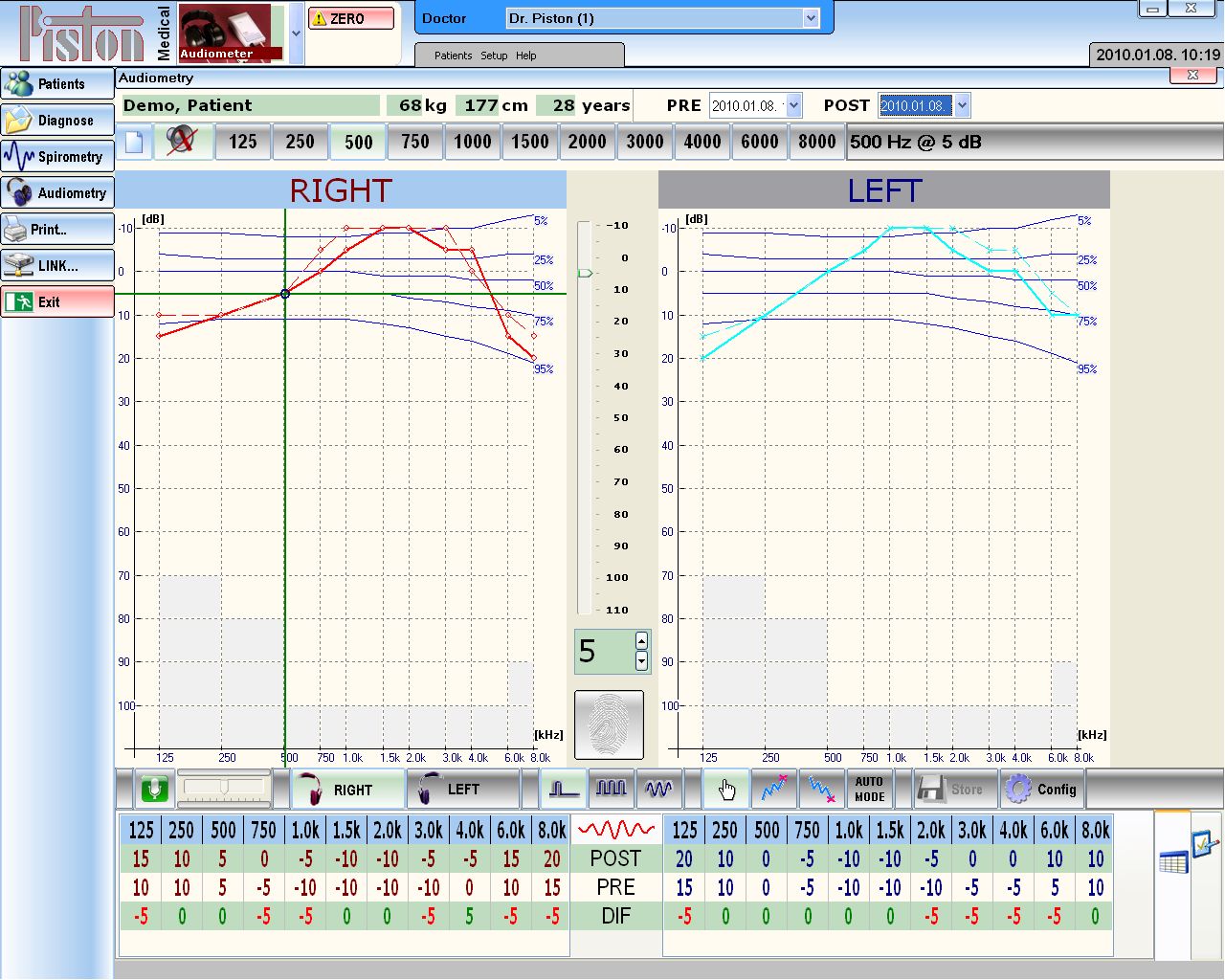

Features of the audiometer are exactly the same as of the PDD-401 audiometer

  • Manual
  • Semi automatic ascending iteration according to Hughson-Westlake protocol
  • Semi automatic descending iteration
  • Program able automatic sequence

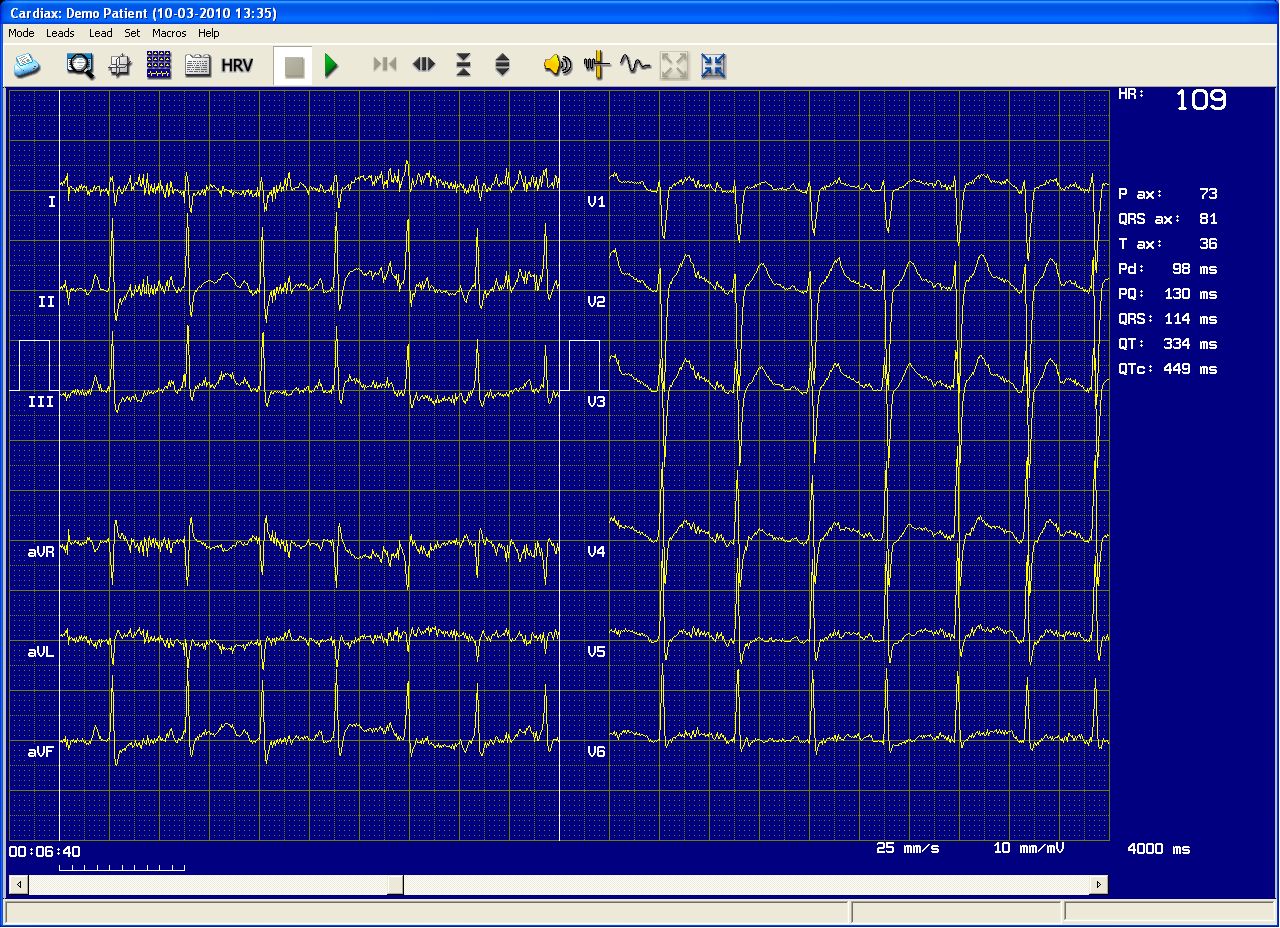

  • Frank lead combination the ECG
  • Vector cardiograms, VCG with 2 or 3 dimensions
  • 3D view can be zoomed, panned and rotated around in any direction
  • Interpretation of 12 lead ECG
  • QRS complexes
  • Medians
  • Rhythm and form analysis
Sampling rate 2000 sample/sec
Resolution 12 bit
Lead number 12
Input impedance > 10 Mohm
Patient protection Floating earth (IEC 601)
Defibrillator protection 5 kV (1 kV/microsec)
CMRR >120 dB
Filter 35, 50/60, 100/120 Hz
Time constant 3.2 sec
Linearity error <0.5 %, < 1/2 LSB
Polarization voltage ±400 mV
Leads 12 standard + 3 Frank


Features of the spirometer are exactly the same as of the PDD-301/spf spirometer

  • Forced ex- and inspiration
  • Static vital capacity
  • Maximal voluntary ventilation




Calibration syringe PCS-3000
Bacterial and viral filter PBF-100
Mouthpiece MPA-30
Nasal clip PNC-65


Size H: 45 mm (1,75”)
  W: 300 mm (11,8”)
  L: 240 mm (9,33”)
Weight 220 g (0,5 lbs)
PC connection USB port
Power supply No need for any external power supply









Device   Audiometer

Carrying case with wheels (optional)   ECG

    Spirometer
