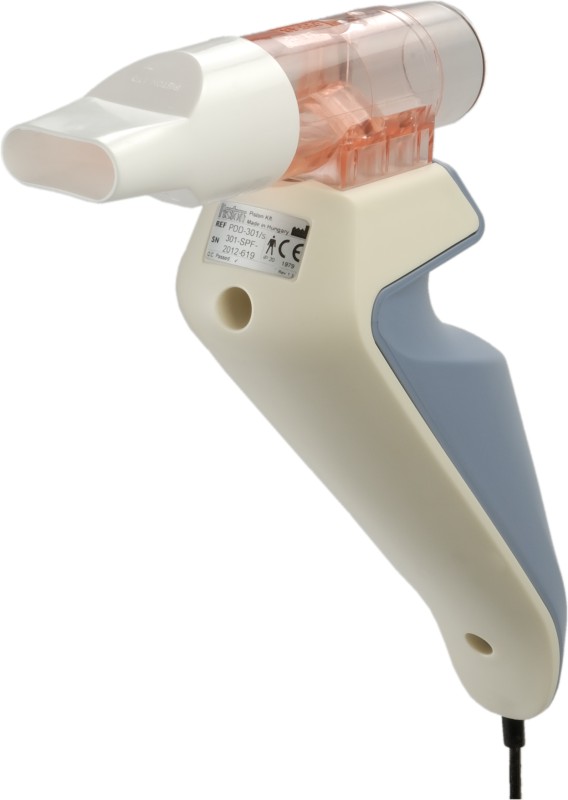

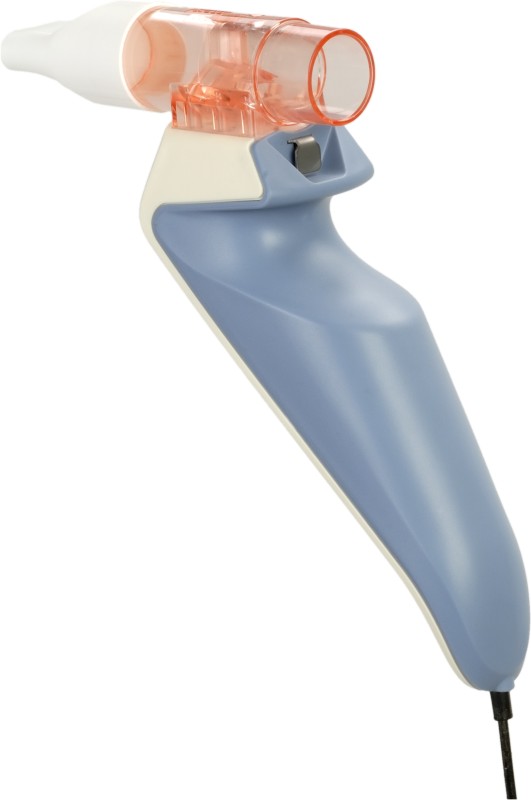

Spirometer: PDD-301/sh
Sleek design ergonomic form and just one USB connection to the PC
PDD-301/shm version has built-in ambient temperature, pressure and humidity sensors for the full automatic BTPS correction
The spirometer is the basic device of the functional lung diagnostics
It is inevitable in detecting the early malfunction of the respiratory system
-
COPD
-
Asthma
-
Chronic bronchitis
-
Obstructive ventilation disorder
-
Emphysema
The PinkFlow* flow-meter and the spirometer fully complies with the specifications and requirements of the Standardization of Lung Function Testing ATS/ERS Task force (European Respiratory Journal 2005)
Connecting to a laptop PC provides full portability in battery mode as well
Software system overview
- Measurement modes
- Measured parameters
- Accessories
- Technical data
-
Forced ex- and inspiration
-
Static vital capacity
-
Maximal voluntary ventilation
Whole list of Pulmonary Function Tests’ parameters
| Forced ex and inspiration | |
| FVC | Forced Vital Capacity |
| FEV*0.5 | Forced Expiratory Volume in 0.5 second |
| FEV*1.0 | Forced Expiratory Volume in 1.0 second |
| FEV*0.5/IVC | Ration of FEV*0.5 and IVC in % |
| FEV*0.5/FVC | Ration of FEV*0.5 and FVC in % |
| FEV*1.0/IVC | Ration of FEV*1.0 and IVC in % |
| FEV*1.0/FVC | Ration of FEV*1.0 and FVC in % |
| PEF | Peak Expiratory Flow |
| FEF*25-75% | Forced mid-Expiratory Flow rate |
| FEF*75% | Forced Expiratory Flow at 75% lung volume |
| FEF*50% | Forced Expiratory Flow at 50% lung volume |
| FEF*25% | Forced Expiratory Flow at 25% lung volume |
| FET | Forced Expiratory Time |
| MTT | Mean Transit Time |
| FIVC | Forced Inspiratory Vital Capacity |
| FIV*0.5 | Forced Inspiratory Volume in 0.5 sec |
| FIV*1.0 | Forced Inspiratory Volume in 1.0 sec |
| PIF | Peak Inspiratory Flow rate |
| FIF*25-75% | Forced mid-Inspiratory Flow rate |
| Static vital capacity | |
| IVC | Inspiratory Vital Capacity |
| IRV | Inspiratory Reserve Volume |
| ERV | Expiratory Reserve Volume |
| TV | Tidal Volume |
| SVC | Slow Vital Capacity |
| Maximal Voluntary Ventilation | |
| MVV | Maximal Voluntary Ventilation |
| MVV*f | Maximal Voluntary Ventilation Frequency |
| PinkFlow flow meter | PPF-18 |
| Bacterial and viral filter | PBF-100 |
| Mouth piece | MPA-30 |
| Calibration syringe | PCS-3000 |
| Flow meter | PinkFlow |
| Type | PPF-18 |
| Principle | Symmetric and averaging Pitot tube |
| Flow range | ±18 l/s |
| Accuracy | ±2% or 50 ml, whichever is greater |
| Dead space | 36 ml |
| Resistance | 60 Pa/l/s @ 15 l/s |
| Accuracy of volume | ±3 % or ±50 ml |
| Size of handle and flow meter | Height: 200 mm |
| Width: 45 mm | |
| Length: 120 mm | |
| Weight | 250 g |
 |
 |
|
| Hold by a patient | FVC measurement | |
 |
 |
|
| Patient side | IVC measurement | |
 |
 |
|
| PinkFlow release button | MVV measurement | |
 |
||

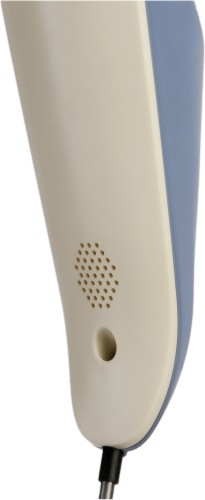

| Built-in BTPS module PDD-301/shm model |
