PinkFlow: PPF-18

The PinkFlow* flow-meter is the newest innovation of our company.
The PinkFlow* flow-meter is the ideal flow-meter for the most demanding pulmonary function tests

  • Hygienic single-use application
  • No moving parts
  • Insensitive against condensation and vapour
  • Integrated gas sampling port
  • Fully interchangeable flow-meters
  • No need for recalibration after changing
  • Quick pneumatic coupling Fully recyclable made from homogenous polystyrene

The PinkFlow* flow-meter fully complies with the specifications and requirements of the Standardization of Lung Function Testing ATS/ERS Task force (European Respiratory Journal 2005)

  • Application
  • Hygienic recommendation
  • Accessories
  • Technical data

The PinkFlow flow meter guarantees the highest accuracy and hygiene for the for the following devices

Spirometer PDD-301/s
Rhinomanometer and spirometer PDD-301/r
Breath CO monitor and spirometer PDD-301/sco
Breath CO monitor and rhinomanometer PDD-301/rco
Whole body plethysmograph PDT-111/p
Diffusion capacity test PDT-111/d
Combo device: Audio + ECG + Spiro PDD-702
Impulse oscillometer PDD-301/o
Ergospirometer exercise test PRE-101

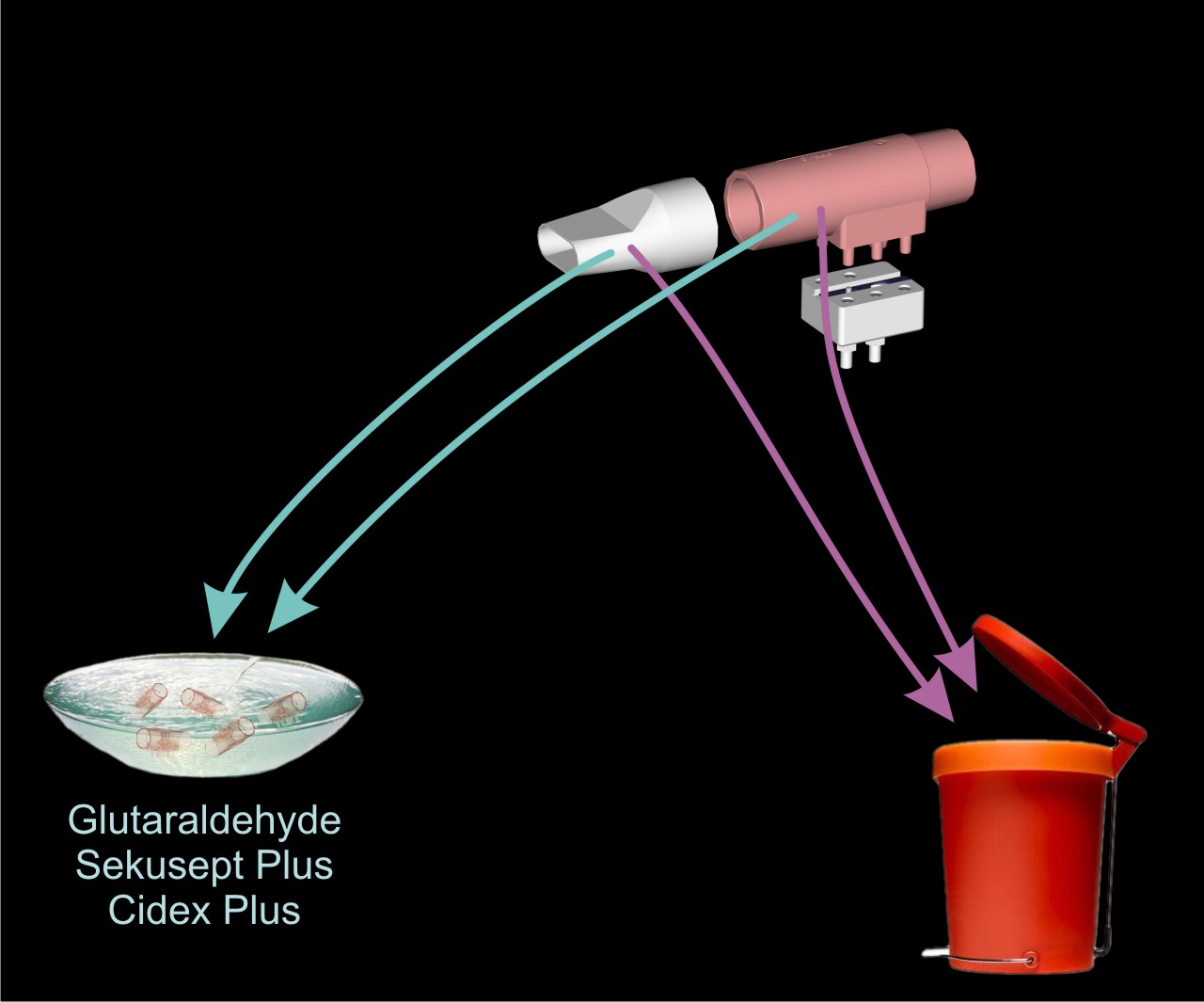

The PinkFlow flow meter provides the most hygienic conditions for both the patient and the operator offering flexible solutions according to the actual possibilities of the user

After usage the PinkFlow and the mouthpiece can be disinfected or thrown away as a dangerous waste

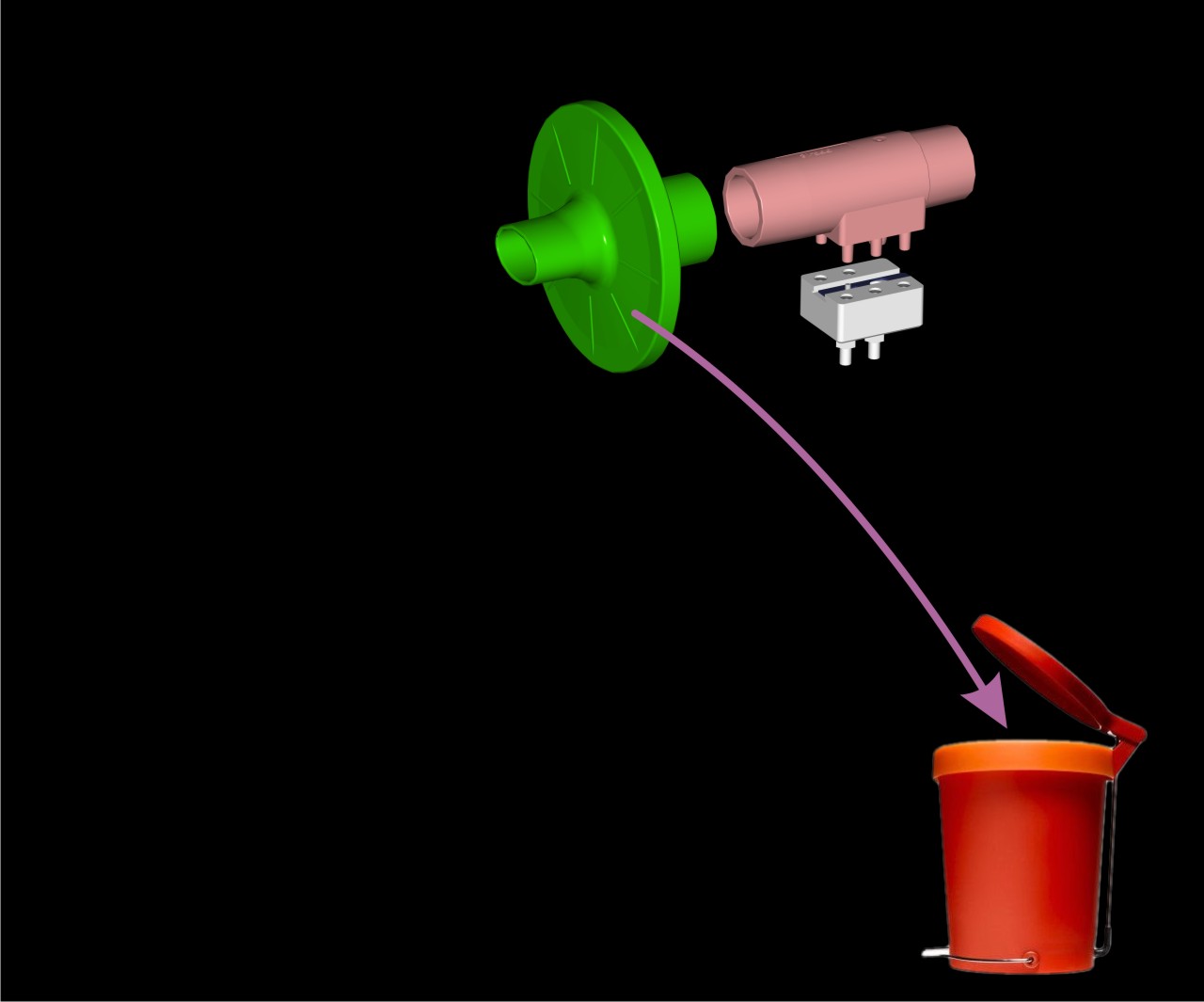

The PinkFlow flow meter is protected by a bacterial and viral filter
After usage the bacterial and viral filter is thrown away as a dangerous waste

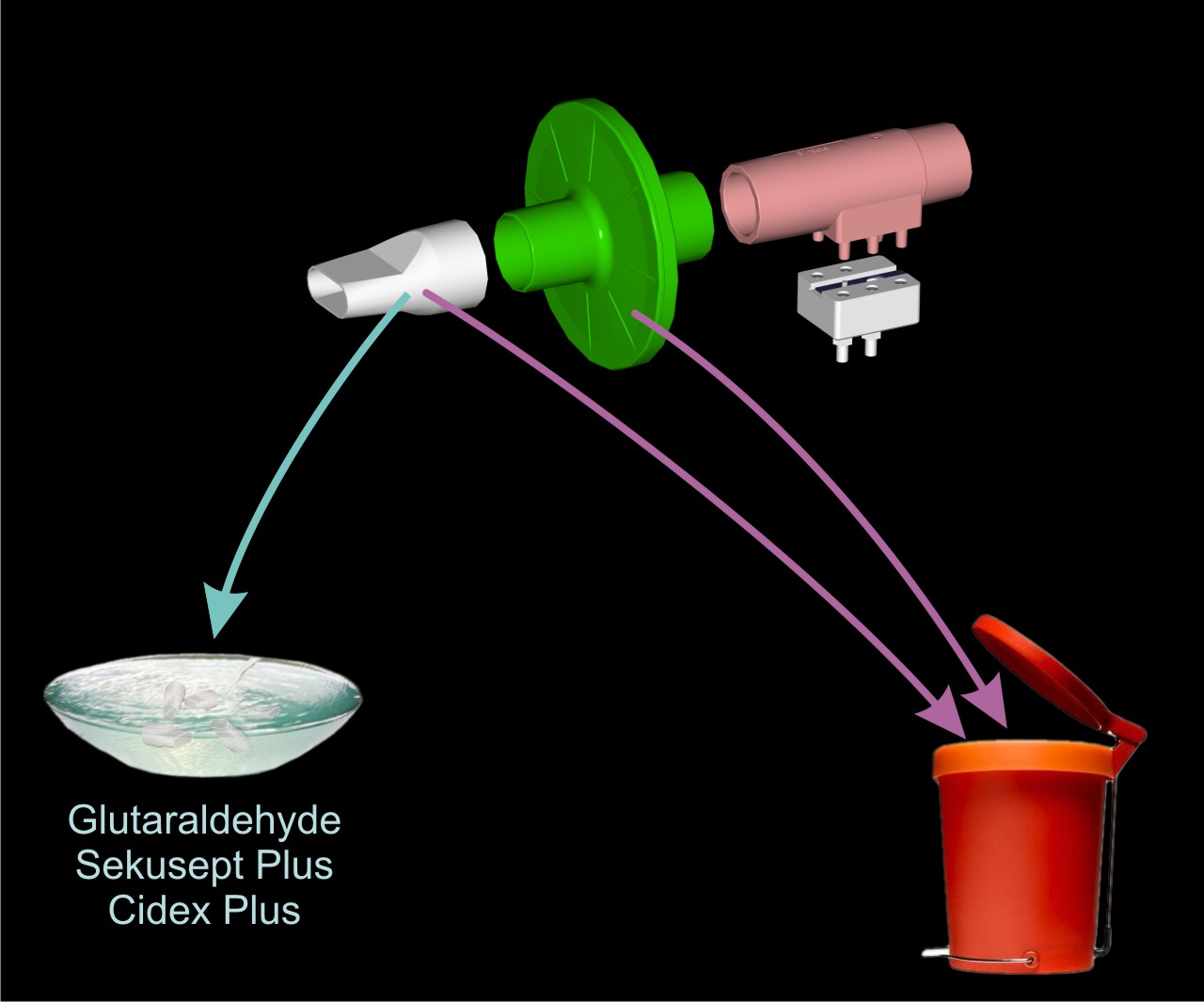

The PinkFlow flow meter is protected by a bacterial and viral filter and further more a mouthpieces is used
After usage the mouthpiece can be disinfected or thrown away along with the bacterial and viral filter as a dangerous waste


Bacterial and viral filter PBF-100
Mouth piece MPA-30
Mouth piece PMP-30
Nasal clip PNC-65
Calibration syringe PCS-3000


Flow meter PinkFlow
Type PPF-18
Principle Symmetric and averaging Pitot tube
Flow range ±18 l/s
Accuracy ±2% or 50 ml, whichever is greater
Dead space 36 ml
Resistance 60 Pa/l/s @ 15 l/s
